Beskrivelse

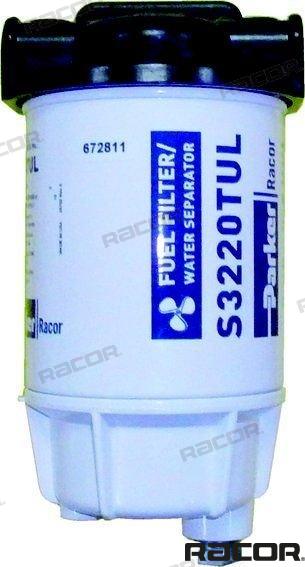

Part number RAC320R-RAC-02

Height: 238 mm
Transparent cup 8
Cartridge-head disassembly: 25,4 mm, 1”
Element: RACS3220UL
Maximum Flow: 340 l/h 60 gph
Flow Velocity: 342 l/h, 60 gph
Brand Racor
Max. 340 l/h 60 gph
Measurement 238 x 102 x 102 mm
Ø 102 mm
Pressure 7 PSI 0.05 bar
Maximum pressure 7 PSI, 0.05 bar
Central Threads 1 1/4”
Head thread size 1/4-18 NPTF
Temperature -40ºC +124ºC
Working temperature -40ºC +124ºC
Pressure Drop 0.61 PSI, 0.04 bar
Flow Speed 340 l/h 60 gph
Filter Element RACS3220UL
Central Threads 1 1/4”
Head Port Size 1/4-18 NPTF
Element Removal Underbowl 25,4 mm 1”

OEM:

Volvo: 835316, 841054, 855952, 857632, 877765

Mercruiser: 35-802893Q4, 35-809101
